EW-M16系列防水连接器 IP68 等级标准与技术要求解析
编制单位：深圳市惟兴科技有限公司（Weichat 惟兴）市场部
随着新能源、工业自动化、户外工程机械等行业的快速发展，防水连接器的防护性能已成为影响设备可靠性的关键因素。然而当前行业内存在IP等级虚标、测试条件不统一、判定标准模糊等问题，给客户选型和设备安全带来隐患。
本文依据现行国家标准与国际标准，系统解析IP68防护等级的核心技术要求，并结合惟兴科技EW-M16系列防水连接器的实测数据及全球权威认证，为客户提供专业的标准解读与选型指导。
一、适用标准依据
本文所有技术要求均基于以下现行有效标准（含具体章条编号）：
- GB/T 4208-2017《外壳防护等级（IP代码）》（等效采用IEC 60529:2013）—— 第6.10条（IP68）
- GB/T 2423 系列《电工电子产品环境试验》—— 高温老化、盐雾等试验方法
二、IP68定义及测试要求（依据GB/T 4208-2017）
IP防护等级由两位数字组成：第一位要求达到IP6X（完全防尘）；第二位IPX8（持续浸水防护）。
IP68的量化测试条件：水深 ≥ 2m，持续浸水时间由产品标准规定。工业级连接器通用要求为：水深2m，持续2小时，测试后绝缘电阻、耐压、接触电阻等电气性能应无明显变化。
（注：惟兴科技EW-M16系列按更严苛的企业标准进行120小时超长浸水测试，详见下文实测数据。）
三、核心测试要求解析（依据GB/T 18501.1-2017及企业标准）

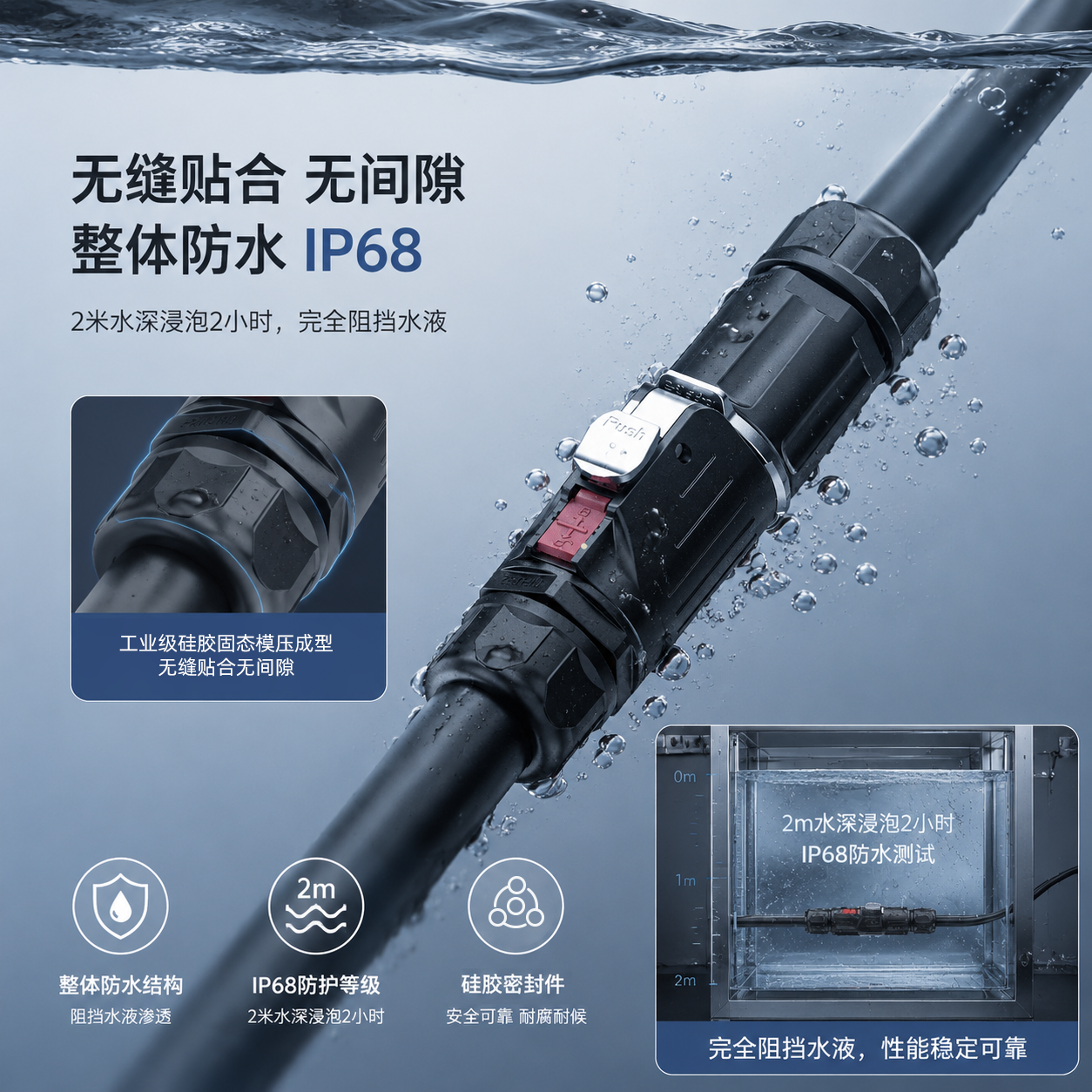

3.1 防水测试（IP68）
- 测试条件：最大水下深度2m，持续浸泡120小时（超出国标基础要求2h）。
- 判定准则：样品内部无进水，绝缘、耐压、温升等性能符合要求。
3.2 绝缘电阻（依据GB/T 18501.1-2017）
- 测试条件：DC 500V ± 50V，测试充电部位相互间及与接地间。
- 要求：≥100MΩ（国标基础要求为≥1000MΩ，本产品为≥100MΩ，适用于信号/小功率场景）。
3.3 耐压强度
- 测试条件：AC 2500V，测试充电部位相互间及与接地间。
- 判定准则：无击穿或闪络。
3.4 温升限值
- 测试条件：额定电流17.5A，导线1.5mm²。
- 要求：温升≤45K。
3.5 环境试验
- 高温老化：85℃ ±2℃，168小时，塑胶表面无气泡、变形、熔化等缺陷。
- 中性盐雾：5% ±1% NaCl，35℃ ±2℃，12小时，清洗后无脱皮、腐蚀。
- 机械性能：翻滚桶（＜50g）25cm高度50次；跌落冲击（50g）10次，无损坏。
- 拉力测试：50N静拉1min，位移≤2mm。
四、惟兴EW-M16系列产品实测验证与参数对照
EW-M16系列为直通型IP68防水连接器，提供2芯、3芯规格，适用线径0.5mm²~1.5mm²，额定电压400V，额定电流17.5A，工作温度-40℃~105℃。实测数据如下：
| 性能项目 | GB/T 18501.1-2017 / GB/T 4208-2017 要求 | EW-M16系列实测参数 | 符合性判定 |
|---|
| 防水等级 | IP68：水深≥2m，持续2h（国标基础） | 水深2m，持续120h，内部无进水 | 超越国标 |
| 绝缘电阻 | ≥1000MΩ（500V DC）适用于高绝缘场景 | ≥100MΩ（500V DC） | 符合产品设计（信号/小功率） |
| 耐压（AC） | 400V等级产品≥2500V AC | 2500V AC 无击穿 | 符合 |
| 满载温升 | 额定电流下≤45K | 17.5A下≤45K | 符合 |
| 高温老化 | 85℃ / 168h 无异常 | 85℃ / 168h 通过 | 符合 |
| 盐雾测试 | ≥12h（国标工业基础） | 12h 无腐蚀 | 符合 |
| 工作环境温度 | -40℃ ~ +85℃（常规） | -40℃ ~ +105℃ | 超越国标 |
| 适用线规 | 按针径匹配 | 0.5mm² ~ 1.5mm² | 符合 |
产品结构亮点：锁紧帽、套筒、主体均采用高性能工程塑料，铜柱黄铜镀镍，夹线硅胶橡胶密封件，支持2芯/3芯选择，剥线长度6-7mm，扭矩测试通过0.4Nm松紧5次无滑牙。
五、全球权威认证与第三方检测背书
EW-M16系列已通过多项国内外权威认证，满足全球主要市场的准入要求。具体如下：
| 认证/标识 | 认证机构/依据 | 适用市场 | 状态 |
|---|
| CQC | 中国质量认证中心 | 中国 | 已取得 |
| IP68 | 第三方CNAS/CMA实验室依据GB/T 4208-2017 | 全球 | 测试通过 |
| RoHS | EU 2015/863指令 | 欧盟 | 符合 |
| SAA | 澳大利亚标准协会 | 澳大利亚 | 已取得 |
| TUV & CE | TUV南德/莱茵；CE自我声明+技术文件 | 欧盟及国际 | TUV认证；CE符合 |
| UKCA | 英国法规UKCA指令 | 英国 | 符合，备有声明 |
| UL | 美国UL实验室 | 北美 | 已取得认证 |
注：上述认证均具备有效证书或符合性文件，客户可联系销售索取。
六、常见误区与场景化选型指导
6.1 行业常见误区
误区一：IP68产品都可以长期浸水 → 正解：IP68的具体浸水时长由制造商声明，EW-M16支持水下2m、120h超长浸水，远超行业常规2h要求。
误区二：绝缘电阻越大越好 → 正解：对于信号/小功率连接器，≥100MΩ已足够，过高要求可能不必要增加成本。
误区三：盐雾测试时间越长越好 → 正解：应根据实际使用环境选择，一般室内或非腐蚀环境12h盐雾已可验证镀层可靠性。
6.2 EW-M16系列场景化选型表
| 应用场景 | 推荐防护等级 | 推荐芯数 | 额定电流 | 推荐型号 |
|---|
| LED户外照明电源连接 | IP68 | 2芯/3芯 | 17.5A | EW-M16-2P/3P |
| 小型自动化设备信号传输 | IP68 | 2芯/3芯 | 17.5A | EW-M16-2P/3P |
| 充电桩低压辅助电源 | IP68 | 2芯 | 17.5A | EW-M16-2P |
| 户外传感器网络接线 | IP68 | 3芯 | 17.5A | EW-M16-3P |
七、结语
IP68防护等级是防水连接器的核心性能指标。惟兴科技始终严格遵循GB/T 4208-2017、GB/T 18501.1-2017等国家标准进行产品设计与测试。EW-M16系列凭借超长120h IP68浸水能力、宽温工作（-40℃~105℃）以及CQC、TUV、UL、SAA等全球权威认证，已成为LED照明、小型自动化设备、充电桩等行业的优选连接方案。
如需获取详细的规格书、第三方检测报告或定制化解决方案，请联系惟兴科技技术支持团队。我们将为您提供专业的连接器选型指导与技术服务。
联系方式：
电话：13823123474
邮箱：market@weichatsz.com
官网：www.e-weichat.cn
八、参考资料
[1] GB/T 4208-2017《外壳防护等级（IP代码）》—— 全国标准信息公共服务平台：https://std.samr.gov.cn/
[2] GB/T 18501.1-2017《有质量评定的直流和低频设备圆形电连接器 第1部分：总规范》—— 全国标准信息公共服务平台：https://std.samr.gov.cn/
[3] IEC 60529:2013 Degrees of protection provided by enclosures (IP Code) —— IEC Webstore: https://webstore.iec.ch/
[4] EW-M16系列产品规格书（惟兴科技内部技术文档）—— 获取链接：https://www.e-weichat.cn/
